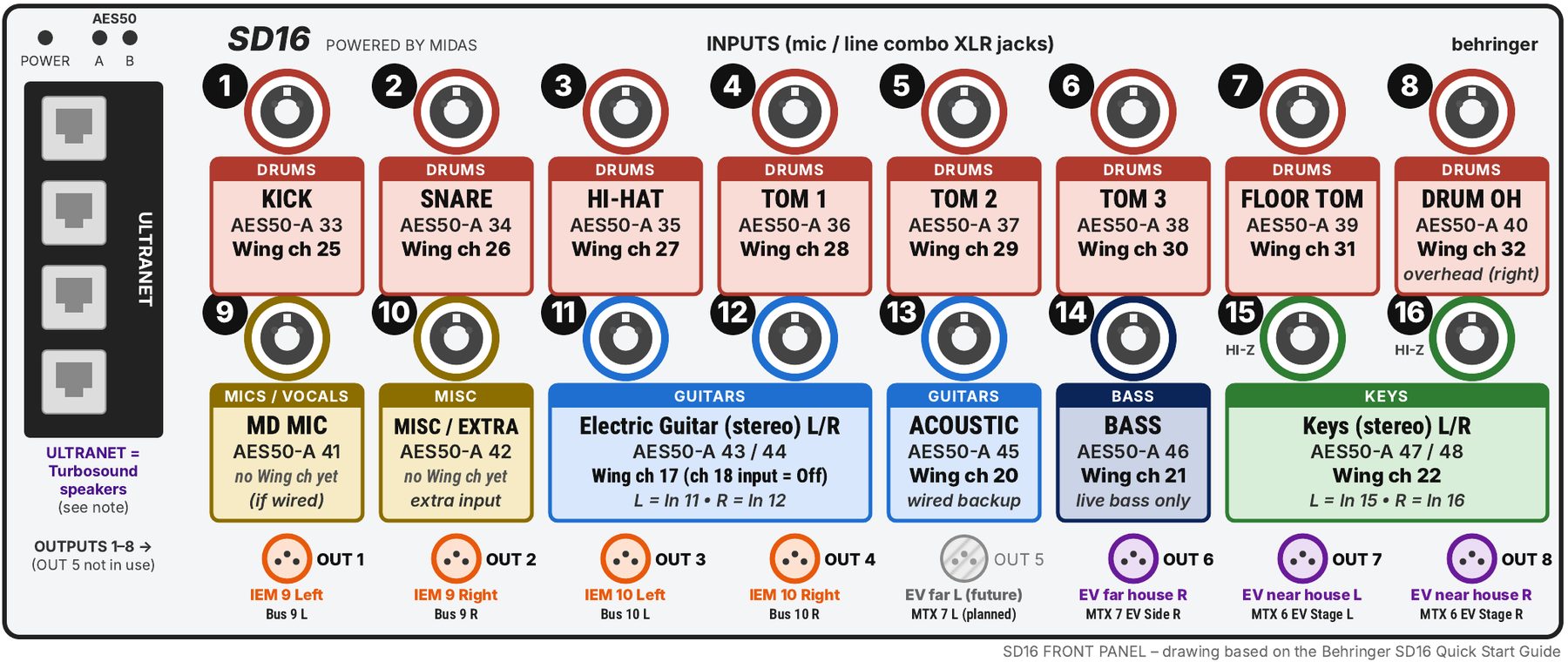

SD16 Stage Box Patch (Sound)
SOUND PERSON version (full detail). SD16 inputs 1–16 = AES50-A 33–48 on the WING. SD16 outputs 1–8 = WING AES50-A outputs 17–24.
Input list
| In | AES50-A | Wing ch | Plugs in here | Group |
|---|---|---|---|---|
| 1 | 33 | 25 | Kick | Drums |
| 2 | 34 | 26 | Snare | Drums |
| 3 | 35 | 27 | Hi-hat | Drums |
| 4 | 36 | 28 | Tom 1 | Drums |
| 5 | 37 | 29 | Tom 2 | Drums |
| 6 | 38 | 30 | Tom 3 | Drums |
| 7 | 39 | 31 | Floor tom | Drums |
| 8 | 40 | 32 | Drum OH (overhead, right) | Drums |
| 9 | 41 | none yet | MD mic (if wired). The Wing channel input needs to be reassigned from Vocal 6 if using. | Mics |
| 10 | 42 | none yet | Misc / extra input | Misc |
| 11–12 | 43 / 44 | 17 | Electric guitar (stereo) L = 11, R = 12. Ch 18 input = Off; for a second guitarist assign an input when used: SD16 port 10, a channel on the S32, or Tracks over Dante. | Guitars |
| 13 | 45 | 20 | Acoustic Gtr (wired backup). Main acoustic = wireless "Ac Gtr", Dante MOD 12, ch 19. | Guitars |
| 14 | 46 | 21 | Bass – live player only. Normally ch 21 = Tracks bass (Dante MOD 5). Live player: set ch 21's main source to AES50-A 46 (see the AV Guide, section 2). | Bass |
| 15–16 | 47 / 48 | 22 | Keys (stereo) L = 15, R = 16. Hi-Z; 1/4" instrument cables (not XLR). | Keys |
Outputs
| Out | Feeds | Wing source |
|---|---|---|
| 1 | IEM 9 – Left | Bus 9 L |
| 2 | IEM 9 – Right | Bus 9 R |
| 3 | IEM 10 – Left | Bus 10 L |
| 4 | IEM 10 – Right | Bus 10 R |
| 5 | EV – far house left (future). Not in use. | MTX 7 "EV Side" L (planned). The Wing still has Bus 11 L here – on the to-do list. |
| 6 | EV – far house right | MTX 7 "EV Side" R |
| 7 | EV – near house left | MTX 6 "EV Stage Send" L |
| 8 | EV – near house right | MTX 6 "EV Stage Send" R |
Out 5: not in use. Planned as MTX 7 "EV Side" L (stereo with Out 6), for a future EV far house left. Now: the far house left Turbosound = MTX 8 "TS Mains" via Ultranet.
Ultranet ports and backup stage box
ULTRANET ports = Turbosound speakers. Channels: see the Turbosound page (far house left 15/13, lobby 12/12).
Backup stage box (S32): inside the IEM rack. Use it if the SD16 runs out of channels or has problems. The S32 is AES50 channels 1–32 on the chain, which is why the SD16 starts at 33.
Plug-in sheet for setup crew: SD16 Setup Crew.
