Stage Layout

View from the audience: you are standing in the audience, facing the stage. ◀ House left is on your left, house right ▶ on your right.

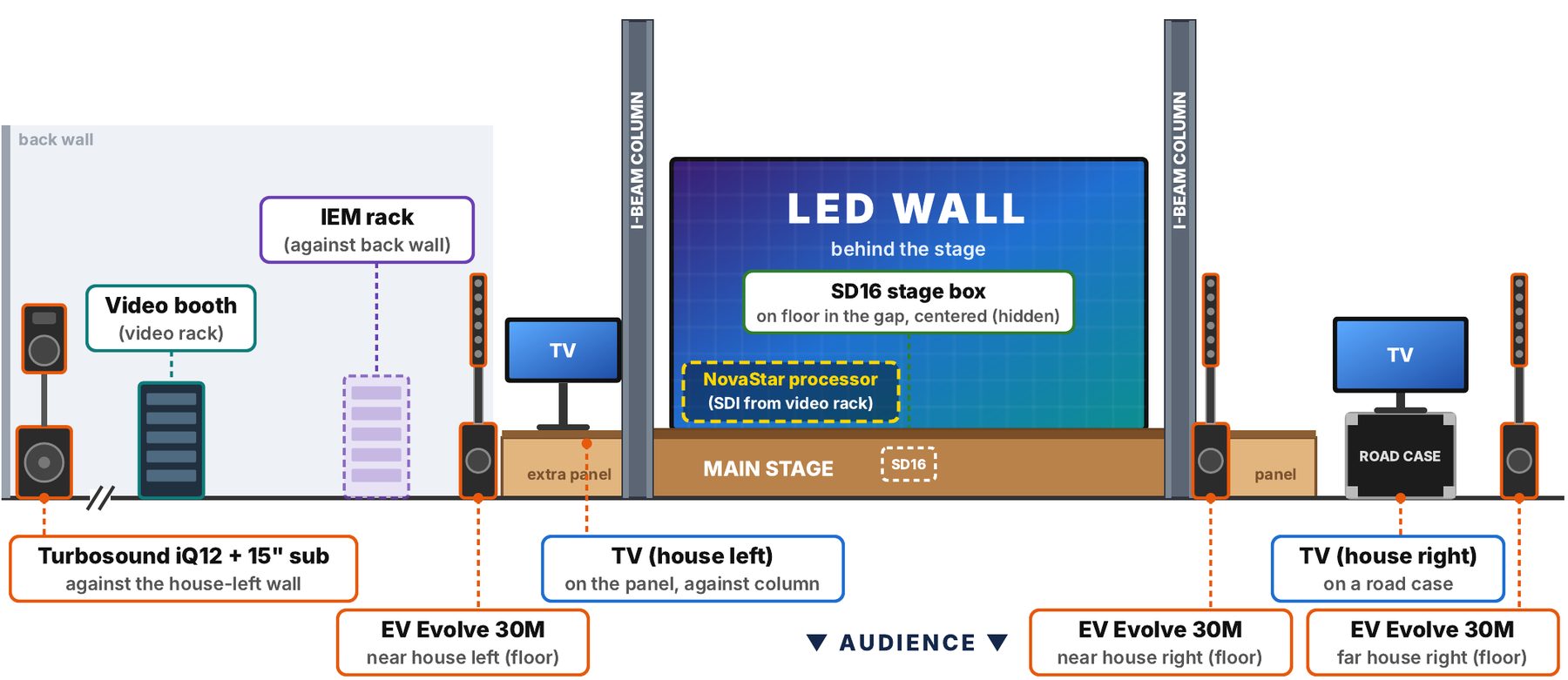

Stage layout, view from the audience
Stage layout, view from the audience (tap to enlarge)

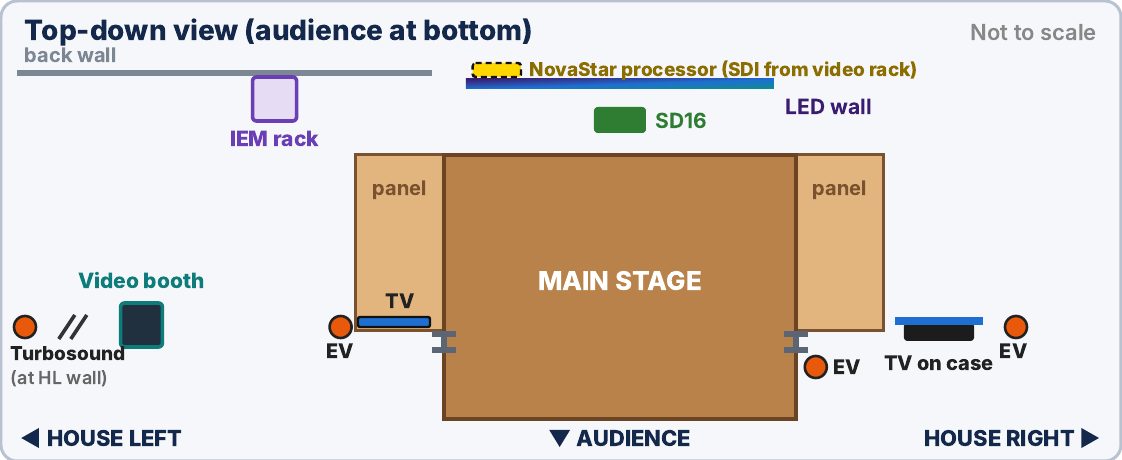

Top-down view (audience at bottom). Not to scale.
Top-down view (audience at bottom). Not to scale. (tap to enlarge)
Where things go
  • House left, from the stage out: TV up on the extra stage panel against the column → EV Evolve 30M on the floor → video booth (video rack).
  • IEM rack: against the back wall, between booth and EV/TV.
  • Far house left: Turbosound iQ12 + 15" sub, against the house-left wall.
  • House right: both EV Evolve 30Ms on the floor (near and far house right); TV on a road case.
  • SD16 stage box: on the floor in the gap, centered (hidden).
  • NovaStar processor: just behind the LED wall, house left (SDI from video rack).
  • Not to scale.
